96FO MPO MTP Patch Panels LC Duplex 1U Fiber Patch Panel 12 Slot

Name: 96FO MPO MTP Patch Panels LC Duplex 1U Fiber Patch Panel 12 Slot
Brand: Twilight Optic or OEM
Price: 1 USD

Quality 96FO MPO MTP Patch Panels LC Duplex 1U Fiber Patch Panel 12 Slot for sale

Brand Name : Twilight Optic or OEM

Model Number : TW-1U4MDA03-LCB

Place of Origin : Made In China

MOQ : 20

Price : Can be disscussed

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000pcs/month

Delivery Time : 15-20 working days

Packaging Details : Standard Carton

Material : Cold-rolled steel sheet

Size : 430*362.4*44mm

Max Capacity : 96 Core LC

Adapter Panel : 4 pcs

Main body's depth : 1.2mm

Color : Black

Warranty : Many Years

Type : MTP, MPO

Contact Now

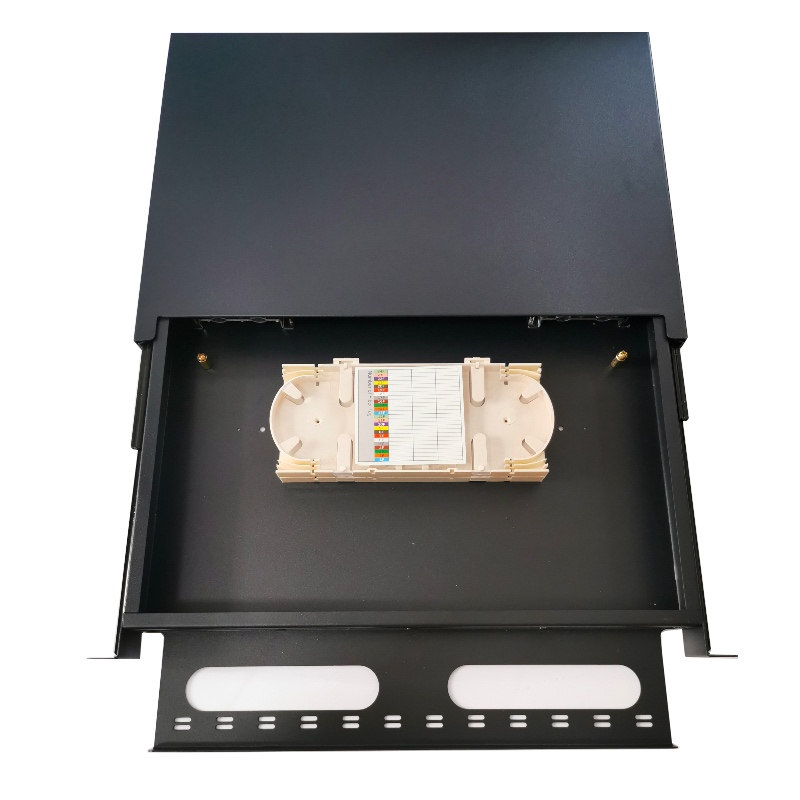

MPO/MTP Slider Drawer Patch Panel 96FO 1u 4 Miniplate LC Duplex 12 Slot For Data Center

Description:

MPO/MTP fiber optic patch cords are with MPO/MTP fiber optic connectors.
They are several fiberglass connections in one such patch cord, for example, 4 fiber, 8 fiber, 12 fiber, etc.

MPO 1U Patch Panel is used in the data center cabling region and connected the ports with cable to the back of the panel.It is usually assembled in 19 inch frame rack and cabinet.

You can assemble with 4 pcs dapter panel, and it can reach to 1U 96 cores splicing.

Specification:

Parameters
Model	TW-1U4MDA03-SC
Max. No. of Cores	96 Cores LC Duplex
Main Body Thick	1.2mm
Max of Splice Tray	4pcs
Splice Tray Type	24 Fibers
Color of Splice Tray	Black or White
Material	Cold rolled steel sheet
Adapter Panel	LC,ST,FC,SC
Cassete type	MPO
Withstanding Voltage (V/min)	3000 (DC), no breakdown, no flashover
Installation Type	Rack Mount
Color	Black
Operating Temperature (°C)	-40~ +60
Dimensions (mm)	430362.444mm
Weight (kg)	4kg

Application:

1. CATV, metro Test equipment
2. Telecommunication networks
3. Local area networks (LAN)
4. Wide area networks (WAN)
5. Premise installations

96FO MPO MTP Patch Panels LC Duplex 1U Fiber Patch Panel 12 Slot
